High-precision planetary gearbox with compact design and robust construction. Offers high torque, low noise, and long service life. Ideal for automation, robotics, and precision machinery.

Contact Us

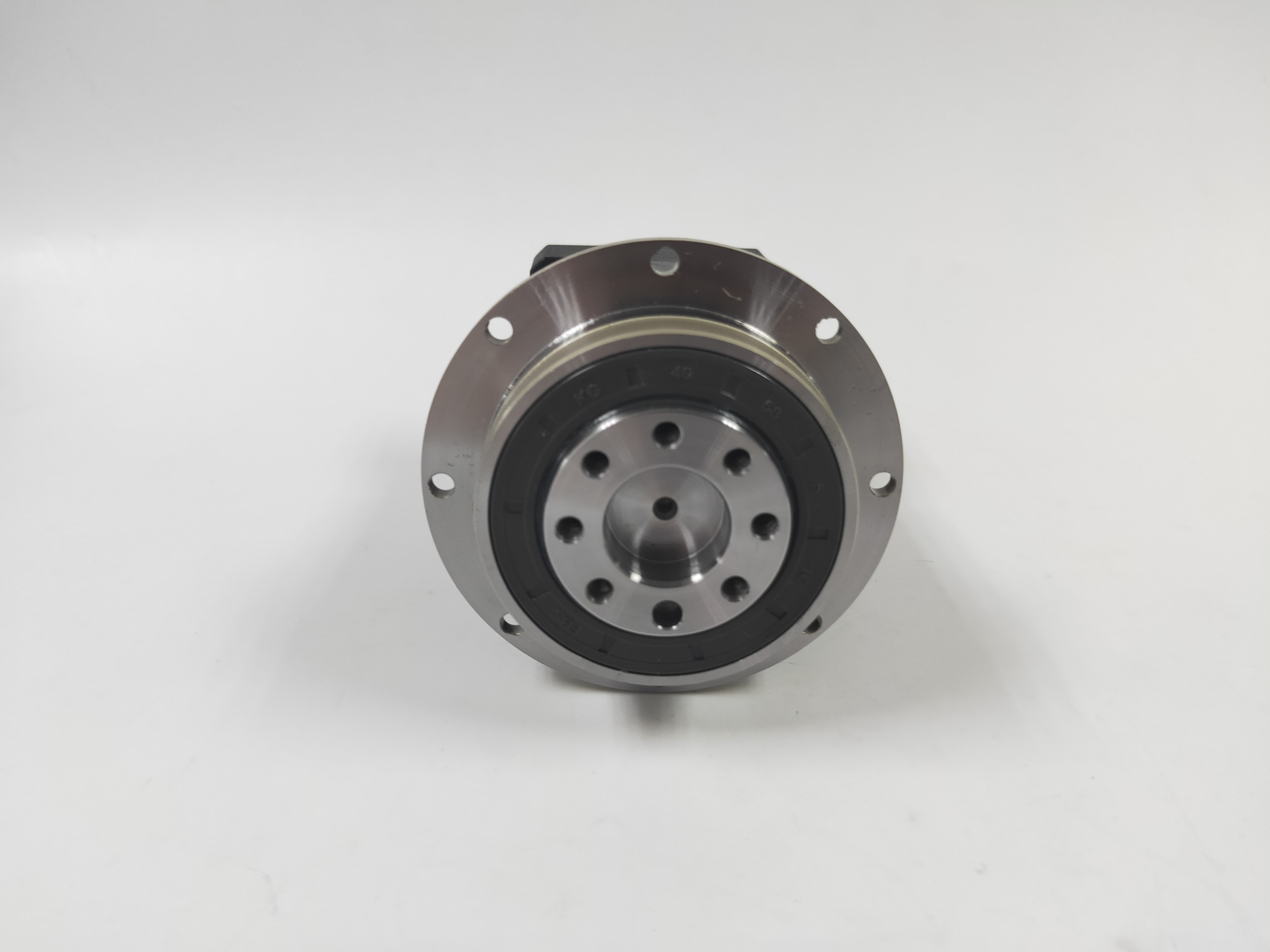

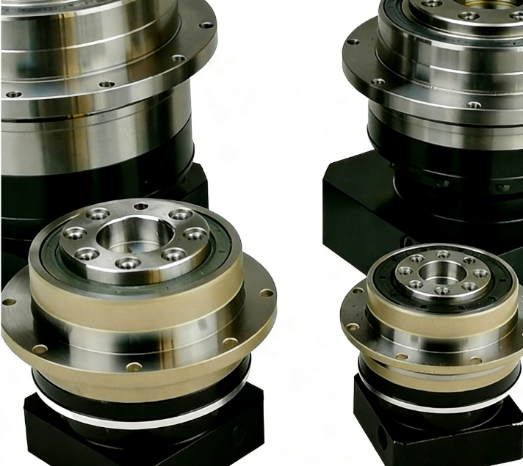

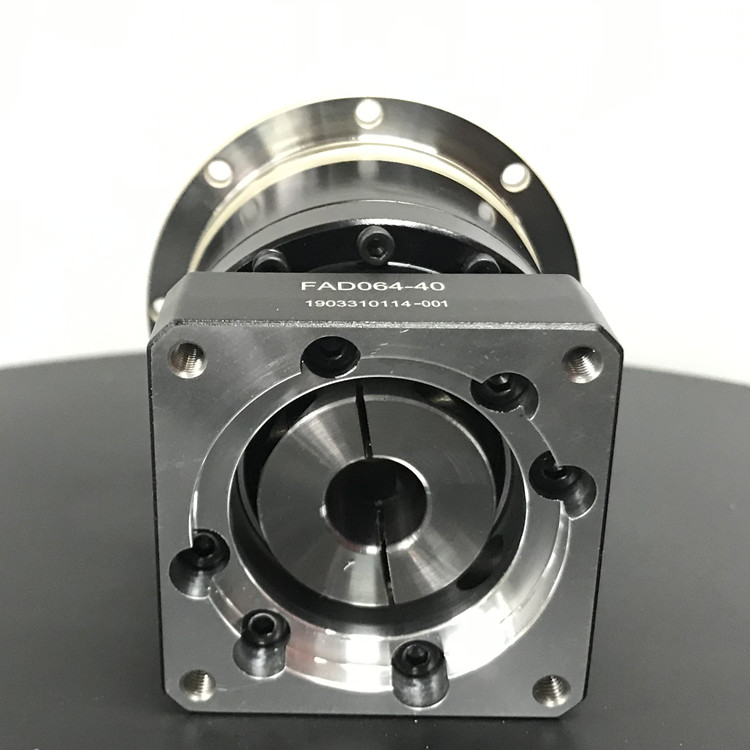

FAD Series High Precision Planetary Gearbox

Product Overview

The FAD Series High Precision Planetary Gearbox is designed for servo and stepper motor applications requiring compact structure, high torque density, and precise power transmission. With a robust planetary gearing arrangement and flange-mounted design, the FAD series ensures stable performance, high efficiency, and reliable operation in demanding industrial environments.


Product Features

  • Compact planetary gearbox design with high torque output
  • Smooth and efficient power transmission with low vibration
  • High rigidity housing suitable for precision motion control
  • Flange-mounted configuration for easy installation
  • Compatible with servo and stepper motors
  • Optional motor integration available


Gearing Arrangement

  • Planetary gear arrangement
  • Optimized for high precision and durability

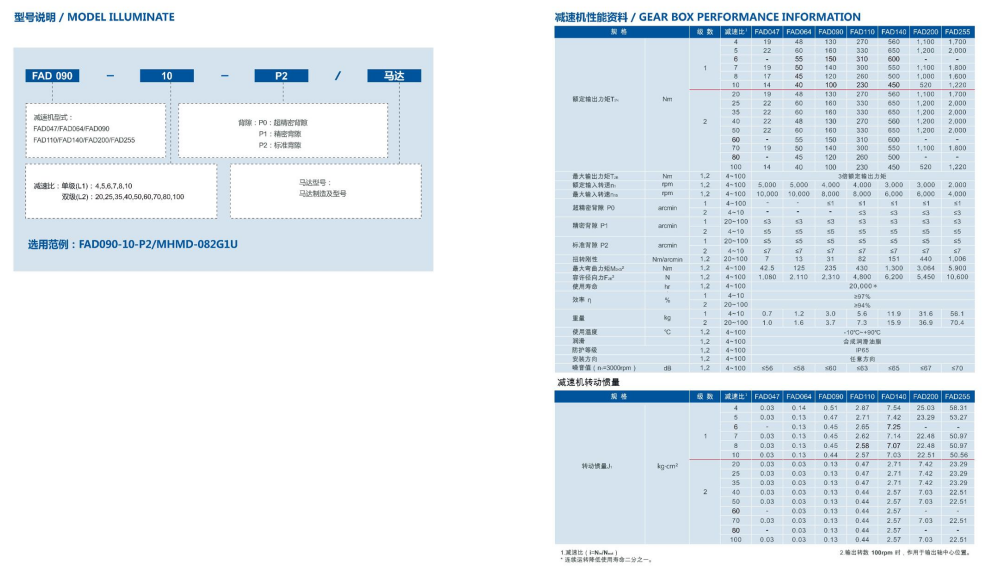

Parameter
Description
Product Name
FAD High Precision Planetary Gearbox
Model Numbers
FAD047 / FAD064 / FAD090 / FAD110 / FAD140 / FAD200 / FAD255
Gear Type
Planetary
Gear Arrangement
Planetary Gearbox
Rated Power
0.06 – 15 kW
Maximum Input Power
Up to 10 HP
Input Speed
2000 – 10000 RPM
Output Speed
5 – 5000 RPM
Reduction Ratio
3 – 100
Output Torque
Up to 6000 Nm
Input Type
Servo / Stepper Motor (up to 4 kW)
Output Type
Shaft Output
Output Shaft Type
Flanged Shaft
Mounting Orientation
Flange Mounted
Structure
Planetary Gearbox + Motor (optional)
Protection Level
IP65
Weight
Approx. 10 kg (model dependent)
Customization Support
OEM, ODM
Brand Name
Drivemotion
Warranty
1 Year
Place of Origin
Sichuan, China
Packing
Carton Box
Sample
Available


Selection Guide

To ensure optimal selection, please confirm:
  • Motor type and power (servo or stepper motor)
  • Required reduction ratio
  • Output torque and load condition
  • Input and output speed requirements
  • Installation space and flange dimensions


Applications

  • Garment manufacturing equipment
  • Building material processing machinery
  • General manufacturing automation systems
  • Packaging and conveying equipment
  • Precision motion control applications


Why Choose FAD Series?

  • High precision planetary transmission
  • Flange-mounted design for compact installations
  • Wide ratio range and power compatibility
  • IP65 protection for industrial environments
  • Flexible configuration with optional motor integration
