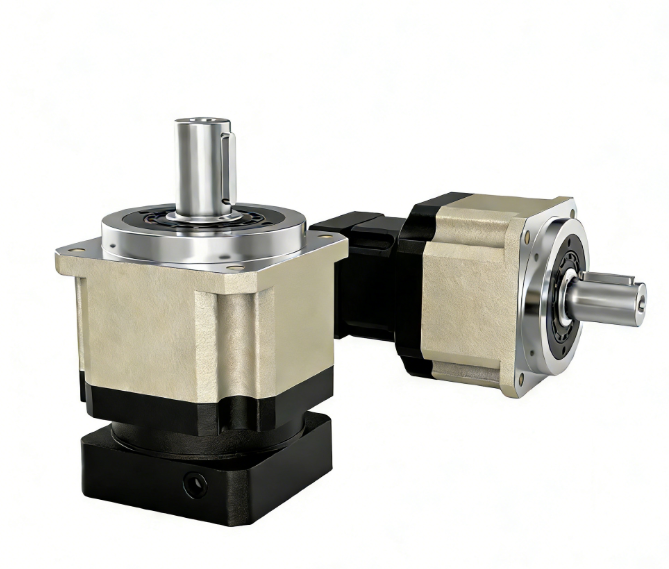

FE & FB Series High Precision Planetary Gearbox

Product Overview

The FE and FB Series High Precision Planetary Gearboxes are designed for servo and stepping motor applications that demand compact design, high torque density, and precise motion control. Featuring robust planetary gearing arrangements, these gearboxes provide smooth, efficient power transmission with minimal backlash. The versatile configurations make them suitable for automation, CNC machinery, AGV systems, and various industrial applications.


Product Features

  • High precision planetary gearbox design for reliable torque output
  • Smooth operation, low vibration, and high transmission efficiency (~95%)
  • Compact and lightweight housing for space-constrained installations
  • Compatible with servo and stepping motors up to 4 kW
  • Optional motor integration for turnkey solutions
  • IP65 protection for harsh industrial environments
  • Customizable colors and OEM/ODM support


Gearing Arrangement

  • Planetary gear arrangement
  • Helical planetary gears ensure low noise, smooth operation, and high durability

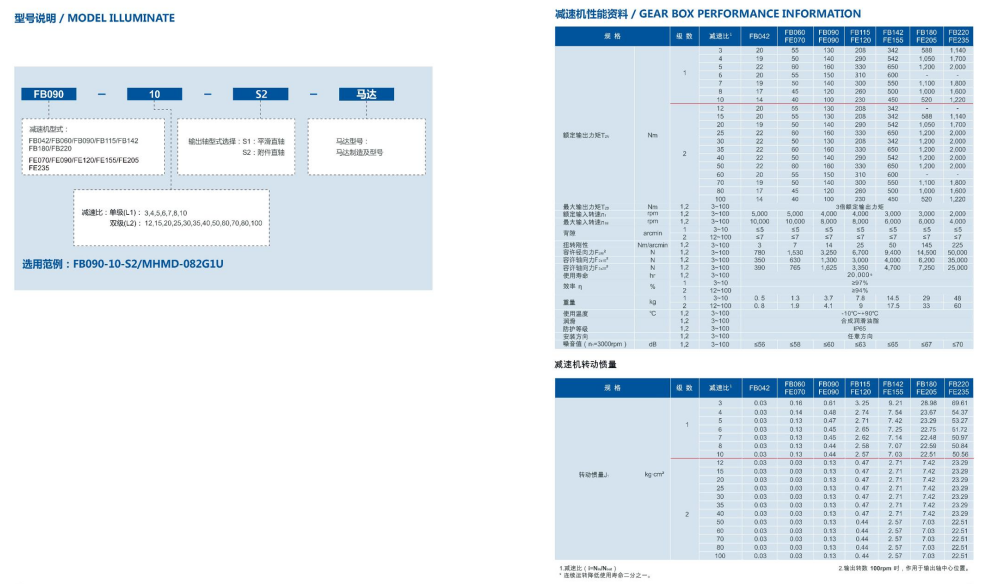

Technical Specifications

Parameter
Description
Product Name
FE / FB High Precision Planetary Gearbox
Model Numbers (FE Series)
FE70 / FE90 / FE120 / FE155 / FE205 / FE235
Model Numbers (FB Series)
FB42 / FB60 / FB90 / FB115 / FB142 / FB180 / FB220
Gear Type
Planetary
Rated Power
0.06 – 15 kW (FE), 0.1 – 15 kW (FB)
Maximum Input Power
Up to 10 HP
Input Speed
2000 – 10000 RPM
Output Speed
5 – 5000 RPM
Reduction Ratio
3 – 100
Output Torque
Depends on motor and reduction ratio (up to 6000 Nm)
Input Type
Servo / Stepping Motor (up to 4 kW)
Output Form
Shaft Output
Output Shaft Type
Solid Shaft
Mounting Orientation
Flange Mounted
Structure
Planetary Gearbox + Motor (optional)
Protection Level
IP65
Weight
8 – 10 kg (model dependent)
Efficiency
Up to 95%
Customization Support
OEM, ODM
Brand Name
Drivemotion
Warranty
1 Year
Place of Origin
Sichuan, China
Packing
Carton Box
Color
Customer Request


Selection Guide

To ensure optimal selection, please provide:
  • Motor type and power (servo or stepping motor)
  • Required reduction ratio
  • Output torque and load conditions
  • Input and desired output speed
  • Installation orientation and space constraints


Applications

  • Automation systems
  • CNC machinery
  • AGV systems and robotics
  • Printing shops and packaging machinery
  • Garment and building material processing equipment
  • Food & beverage production and processing
  • Construction machinery
  • Energy and mining equipment
  • Home-use machinery


Key Advantages

  • High precision planetary transmission with low backlash
  • Compact, lightweight housing for flexible installation
  • Wide ratio and power range for diverse applications
  • IP65 protection ensures reliable operation in industrial environments
  • Optional motor integration for ready-to-install solutions
  • Customizable options and OEM/ODM support
