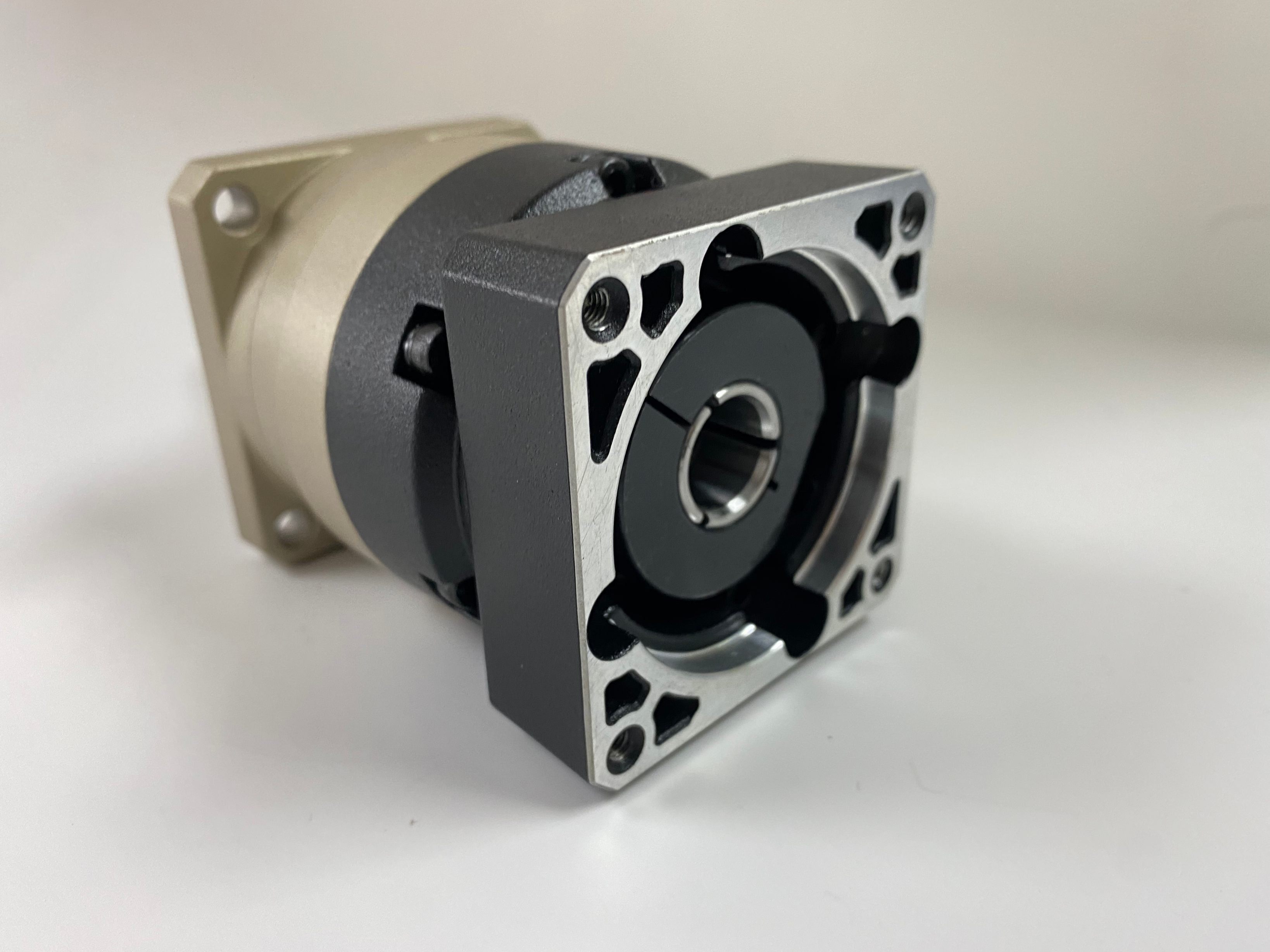

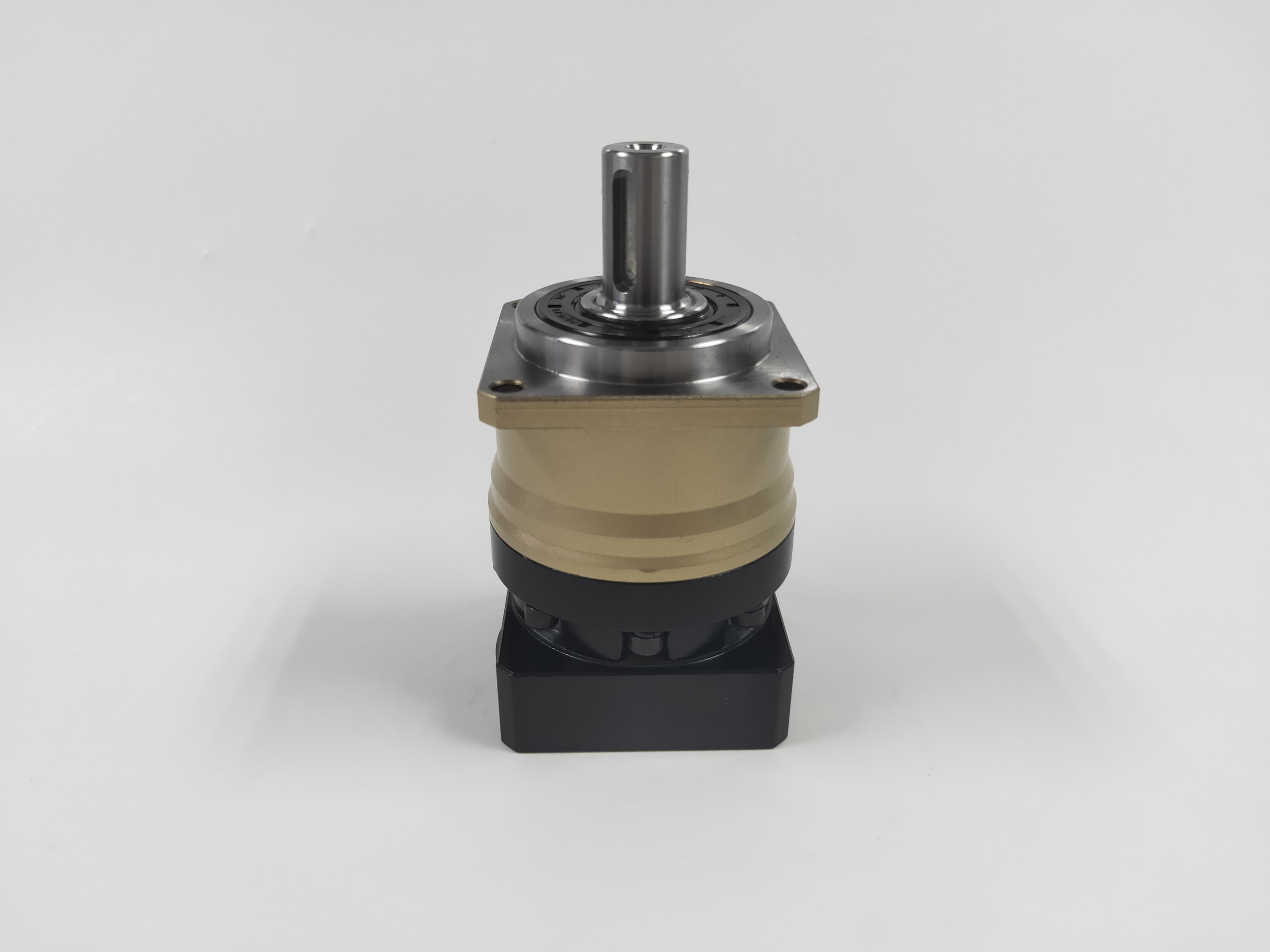

FG & FGA Series Precision Planetary Gearbox

Product Overview

The FG and FGA Series Precision Planetary Gearboxes are designed for applications requiring high torque density, compact structure, and precise motion control. With planetary and helical planetary gear arrangements, these gearboxes deliver smooth, efficient power transmission with minimal backlash. Their versatile configurations make them suitable for automation, printing, food processing, garment manufacturing, and a wide range of industrial applications.


Product Features

  • High precision planetary or helical planetary gearbox design
  • Smooth operation with high torque output, up to 6000 Nm
  • Compact and lightweight housing for space-constrained installations
  • Compatible with servo and stepping motors up to 4 kW
  • Angled or helical planetary design ensures low noise and high efficiency
  • IP65 protection (FGA series) and robust packaging for industrial environments
  • Optional motor integration for turnkey solutions
  • Flexible installation orientation


Gearing Arrangement

  • FG Series: Planetary gear arrangement
  • FGA Series: Helical planetary gear arrangement
  • High rigidity gears for long service life and stable performance

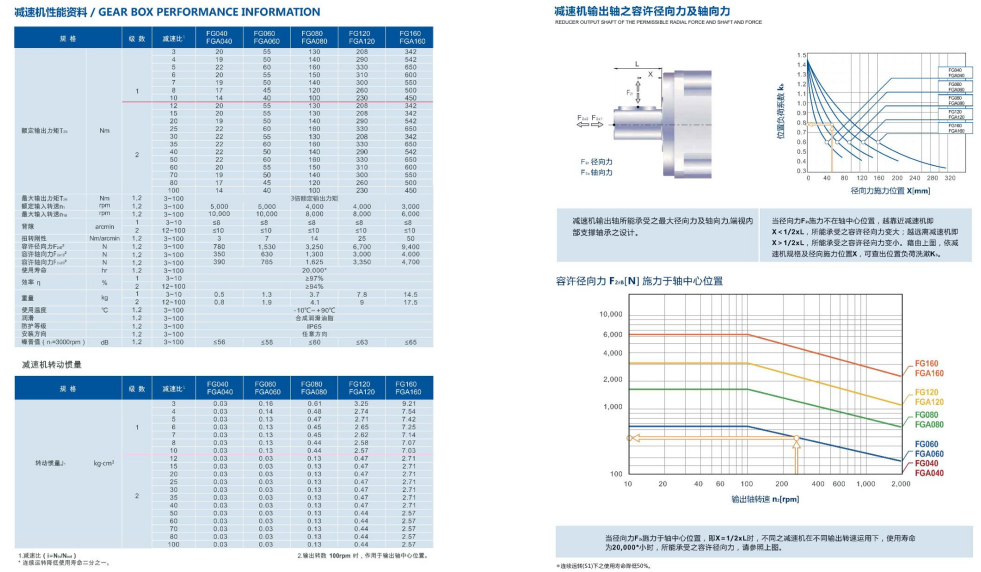

Technical Specifications

Parameter
Description
Product Name
FG / FGA Precision Planetary Gearbox
Model Numbers (FG Series)
FG040 / FG060 / FG080 / FG120 / FG160
Model Numbers (FGA Series)
FGA040 / FGA060 / FGA080 / FGA120 / FGA160
Gear Type
FG: Planetary / FGA: Helical Planetary
Rated Power
0.06 – 15 kW
Maximum Input Power
Up to 10 HP
Input Speed
2000 – 10000 RPM
Output Speed
5 – 5000 RPM
Reduction Ratio
3 – 100 (1:3 – 1:100 for FG series)
Output Torque
Up to 6000 Nm
Input Type
Servo / Stepping Motor (up to 4 kW)
Output Shaft Type
Solid Shaft
Mounting Orientation
Angled
Structure
Planetary Gearbox + Motor (optional)
Material
Aluminium Alloy
Protection Level
IP65 (FGA series)
Weight
Approx. 10 kg (model dependent)
Customization Support
OEM, ODM
Brand Name
Drivemotion
Warranty
1 Year
Place of Origin
Sichuan, China
Packing
FG: Wooden Box / FGA: Carton Box
Keyword
Planetary Reduction Gearbox


Selection Guide

To ensure proper model selection, please provide:
  • Motor type and power (servo or stepping motor)
  • Required reduction ratio
  • Output torque and load conditions
  • Input and desired output speed
  • Installation orientation and available space


Applications

  • Automation industry systems
  • Printing shops and packaging machinery
  • Food and beverage processing equipment
  • Garment manufacturing and building material processing
  • Machinery repair shops
  • Restaurants, retail, and advertising equipment


Key Advantages

  • High precision planetary transmission for stable, low-backlash operation
  • Helical planetary design (FGA) for smoother and quieter operation
  • Compact, lightweight housing for flexible installation
  • Wide ratio and power range for diverse applications
  • IP65 protection ensures reliable performance in industrial environments
  • Optional motor integration for turnkey solutions
  • Versatile packaging (wooden or carton) for safe transport
