FGR/FGAR

High-precision planetary gearbox with compact design and robust construction. Offers high torque, low noise, and long service life. Ideal for automation, robotics, and precision machinery.

Contact Us

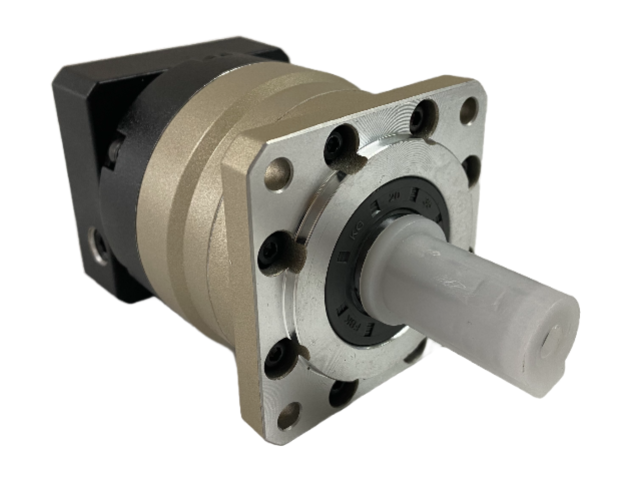

FG / FGA Precision Planetary Gearbox

Product Features

  • Compact planetary and helical planetary gearbox design for high efficiency and precision.
  • Gears made of high-strength materials for long service life and low backlash.
  • Rated power up to 15 kW, maximum torque up to 6000 Nm.
  • Input speed range 2000–10000 RPM, output speed range 5–5000 RPM.
  • Solid shaft output with optional motor integration (servo/stepping).
  • Lightweight aluminium alloy housing with IP65 protection (FGA series).
  • Suitable for continuous and precise motion control in automation applications.

Mounting Types

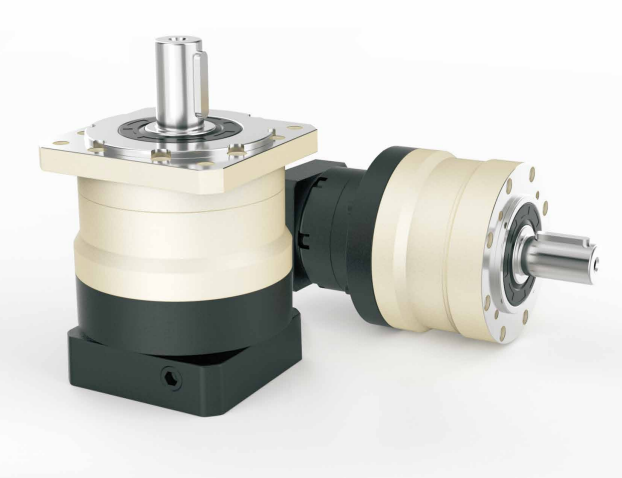

  • Angled mounting orientation.
  • Solid shaft output.
  • Motor integration optional.

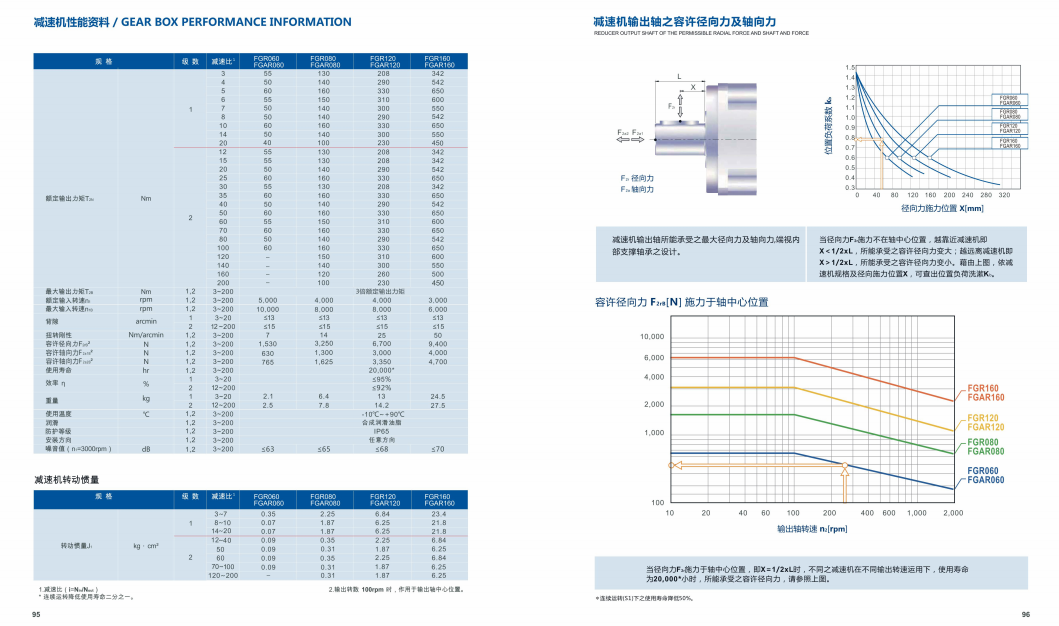

Technical Parameters

Parameter
Description
Model
FGR040 / FGR060 / FGR080 / FGR120 / FGR160 / FGAR040 / FGAR060 / FGAR080 / FGAR120 / FGAR160
Gear Type
FGR: Planetary / FGAR: Helical Planetary
Reduction Ratio
3 – 100
Input Power
0.06 – 15 kW
Maximum Input Power
Up to 10 HP
Input Speed
2000 – 10000 RPM
Output Speed
5 – 5000 RPM
Output Torque
Up to 6000 Nm
Mounting Type
Angled
Gear Material
Alloy steel (precision-ground)
Housing Material
Aluminium Alloy
Lubrication
Oil bath / grease (model-dependent)
Ambient Temperature
-10°C ~ +90°C
Protection Level
IP65 (FGA series)
Noise (n=3000 rpm)
≤63 – ≤70 dB
Weight
Approx. 10 kg (model-dependent)

Selection Guide

To ensure correct selection, please provide:
  • Motor power (kW)
  • Required reduction ratio or output speed
  • Output torque or load condition
  • Mounting type and shaft configuration
  • Working condition (continuous or shock load)

Applications

  • Automation production lines
  • Servo-driven machinery
  • Packaging and material handling systems
  • Robotics and precision motion control
  • Small to medium industrial equipment
