SMR Gearbox

The SMR Series Shaft Mounted Gearbox is a high-torque, compact solution designed for efficient power transmission and long-lasting performance. Its helical gears and hollow shaft output make it ideal for AGV systems, conveyors, and industrial automation, with flexible flange-mounted installation and OEM/ODM support.

Contact Us

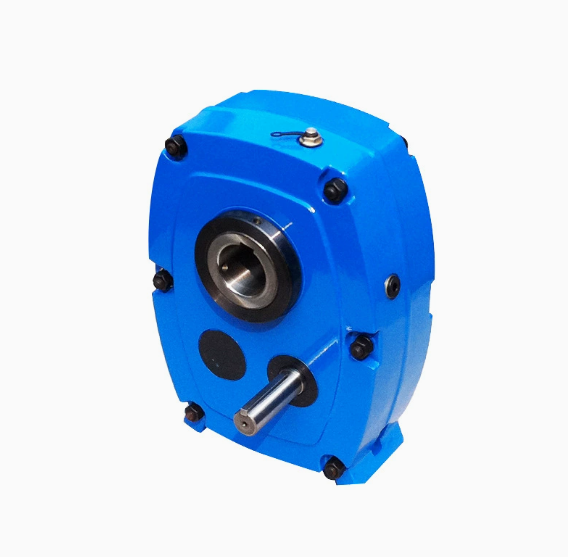

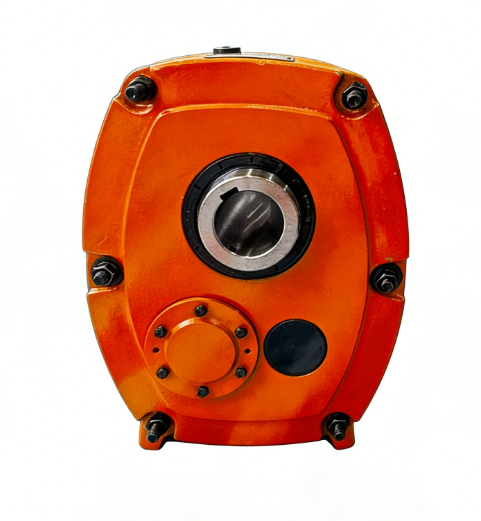

SMR Series Shaft Mounted Gearbox

Product Overview

The SMR Series Shaft Mounted Gearbox is engineered for logistics, AGV, and industrial applications requiring high torque density, compact installation, and long service life. Featuring a helical gear design with hollow shaft output, the SMR series delivers smooth, reliable power transmission while optimizing space and reducing mechanical stress on connected equipment.


Product Features

  • Helical gear design for smooth, efficient transmission
  • High torque density, up to 7449 Nm
  • Wide power range: 0.02 – 135 kW
  • Compact, flange-mounted housing for flexible installation
  • Hollow shaft output for direct coupling to conveyors, rollers, or AGV wheels
  • Long service life with low maintenance requirements
  • OEM/ODM customization available
  • Sample units available for testing


Gearing Arrangement

  • Helical gearing ensures quiet operation and high efficiency
  • Hollow shaft design facilitates direct mounting and alignment


Technical Specifications

Parameter
Description
Product Name
SMR Shaft Mounted Gearbox
Model Numbers
SMR-B (30 mm) / SMR-C (40 mm) / SMR-D (50 mm) / SMR-E (55 mm) / SMR-F (65 mm) / SMR-G (75 mm) / SMR-H (85 mm) / SMR-J (100 mm)
Gear Type
Helical
Rated Power
0.02 – 135 kW
Maximum Input Power
Up to 10 HP
Input Speed
1440 RPM
Output Speed
10 – 4000 RPM
Reduction Ratio
5 / 13 / 20
Output Torque
277 – 7449 Nm
Output Shaft Type
Hollow Shaft
Mounting Orientation
Flange Mounted
Weight
Approx. 10 kg (model dependent)
Customization Support
OEM, ODM
Brand Name
Drivemotion
Warranty
1 Year
Place of Origin
Sichuan, China
Keyword
Shaft Mounted
Packing
Wooden Box
Application
Logistics, AGV systems, conveyors, and industrial machinery


Selection Guide

To ensure proper model selection, please provide:
  • Required output torque and speed
  • Motor type and power
  • Installation orientation and flange dimensions
  • Load and duty cycle conditions


Applications

  • Logistics and AGV systems
  • Conveyor systems in factories and warehouses
  • Industrial automation equipment
  • Garment and building material processing machinery
  • Food & beverage production lines


Key Advantages

  • High torque output with compact flange-mounted design
  • Hollow shaft output for direct coupling
  • Helical gearing ensures quiet, efficient, and durable performance
  • Wide ratio and power options to meet diverse industrial needs
  • OEM/ODM customization and sample availability for flexible solutions
